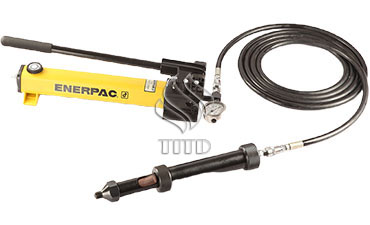

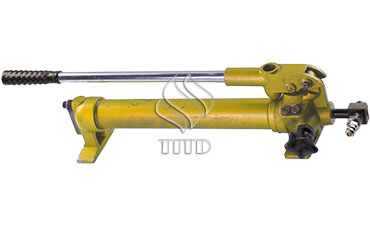

The leak sealing tools used for online leak sealing are the items to inject sealant into the sealing cavity safely and reliably.It is suitable for most of the media leakage occasions, can withstand high temperature, low temperature, and to make the operation easy. Therefore, it is a special tool specially designed and manufactured for online leak sealing. It includes high pressure injection gun, manual hydraulic pump,high pressure hose, quick couplings etc.
High pressure injection guns are the main leak sealing tools to carry out the online leak sealing technique operation. read more

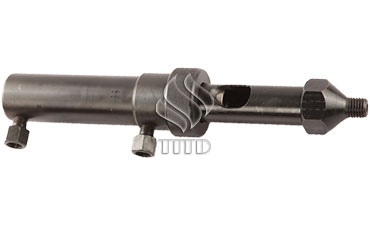

Hydraulic oil drives the piston to drive the push rod to inject sealant. Turn the reversing handle to change the direction of the inlet and outlet oil circuit, and hydraulically push the piston and push rod to reposite.

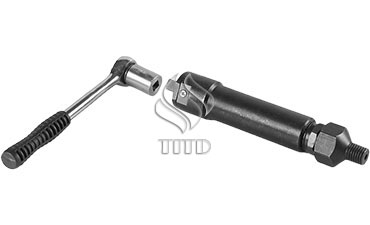

the main leak sealing tools to carry out the under pressure leak sealing technique operation.Easy to carry and inject sealant with a wrench.The inejction process don't include pump necessarily for more convenience.

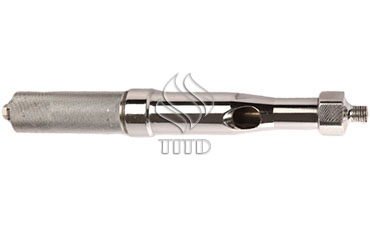

Made of stainless steel, sturdy and durable, small in size, compact in structure, easy to handle, simple to use, anti slip and wear-resistant.

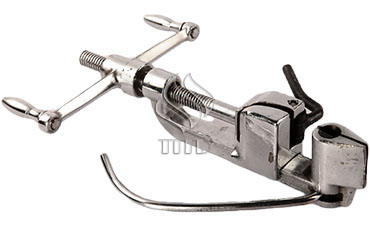

Belt tightener: use to pull the belt taut; it has pulling and cutting function. There are two types of tightener: mechanical tightener and hydraulic tightener.

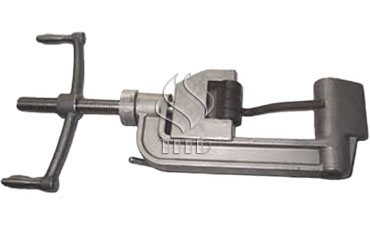

use to pull the belt taut; it has pulling and cutting function.Small size, easy to handle, simple and easy to use, used for tensioning and cutting steel strips.

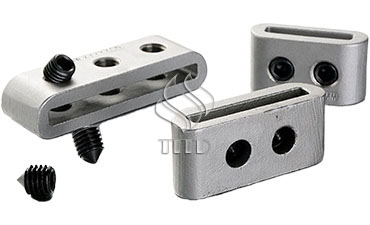

Steel belt clip, after the steel belt is tightened, tighten the top screw of the steel belt clip with an Allen wrench to lock it.

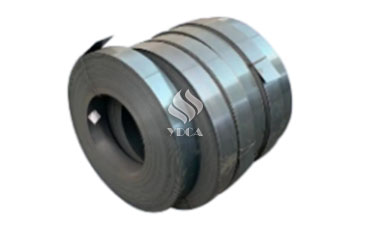

Steel belt: 1Cr18Ni9Ti stainless steel, 1.25mm thick, 30mm width, the length is as required.Steel stripe clip: after pull the steel belt taut.

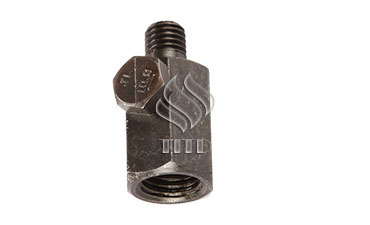

It is a kind of plug valve connecting the injection gun and the clamp. Four specifications are for use: M8/M20、M10/M20、 M12/M20、M14/M20;

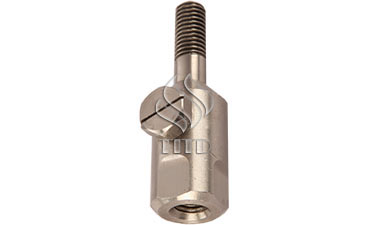

A specialized plug valve is used to connect the injection gun to the injection hole of the fixture, and to connect and close the injection channel. For special situations such as high pressure, such as M14/M20 high temperature and high pressure, high-strength or extended injection valves should be used.

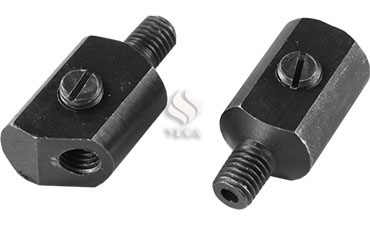

The reversing joint is a component that changes the direction of the connection between the injection gun and the injection hole. When encountering obstacles near the injection hole of the clamp,we should adjust the orientation of the injection channel of the clamp through the reversing joint.

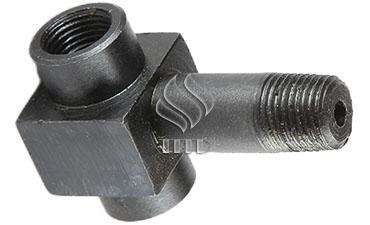

A component connected to a pressure gauge for controlling and monitoring pressure changes during the assembly and connection of leak sealing tools. Connect the pressure gauge to the pump (external thread) and connect the gauge stand joint through a quick joint, high-pressure hose, and injection gun.

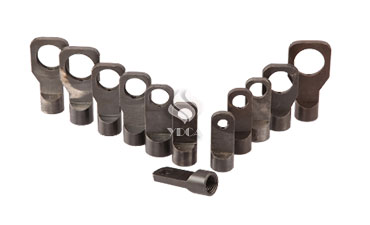

The sealant is injected from bolt hole by screw filling joint.We choose the proper screw filling joint based on the specification of the bolt diameter;Procedure: unscrew the bolts and nuts; install the screw filling joint and screw the nut; connect the injection gun.

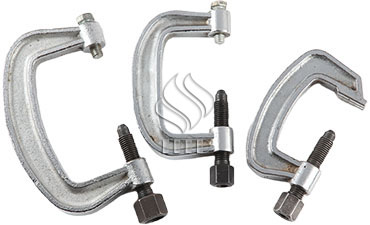

In flange leakage and sealing injection by screw filling joint, it use G-Gallan for strengthening by gripping the flange to prevent the leakage from becoming serious; In valve packing or screw connection leakage, the G-Gallan is used to be as a sealant injection passage.

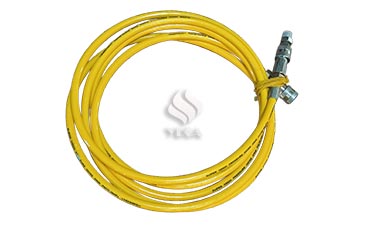

The hose is for connnecting the gun and pump through quick couplings.Inner diameter: (6 ± 0.5) mm, outer diameter: (18 ± 0.5) mm Length: 5m and 10m long End threaded joint: M10 Technical indicators Working pressure: 60MPa, test pressure: 90MPa

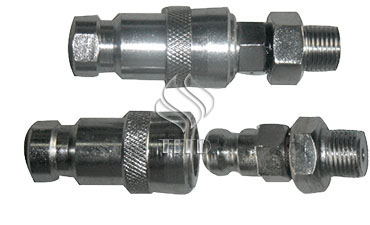

The quick couplings are the leak sealing tools for quick connection to shut off the fluid passage, including male one and female one.
Mainly used for pressurized injection of sealant compound, various models are available according to working conditions. read more
The leak sealing tools are used to inject sealant into the sealing cavity safely and reliably, and to effectively establish a new sealing structure. It is suitable for most of the media leakage occasions.
